At Hupa we have developed a Lump Breaking capable of breaking down clods of feed, salts, sand, among other materials.
The clods can arrive from a dosing system or manually.
Its function is to crumble the lumps that form in the products due to their storage, compaction, etc. Giving it a size and appearance necessary for its subsequent treatment.
We have two models of lump breakers and set for application:
LUMP BREAKING FOR COARSE GRAIN
The best option to break up lumps of material. Breaks up lumps of bulk solid material that have formed during handling or storage.
Features (standard model):

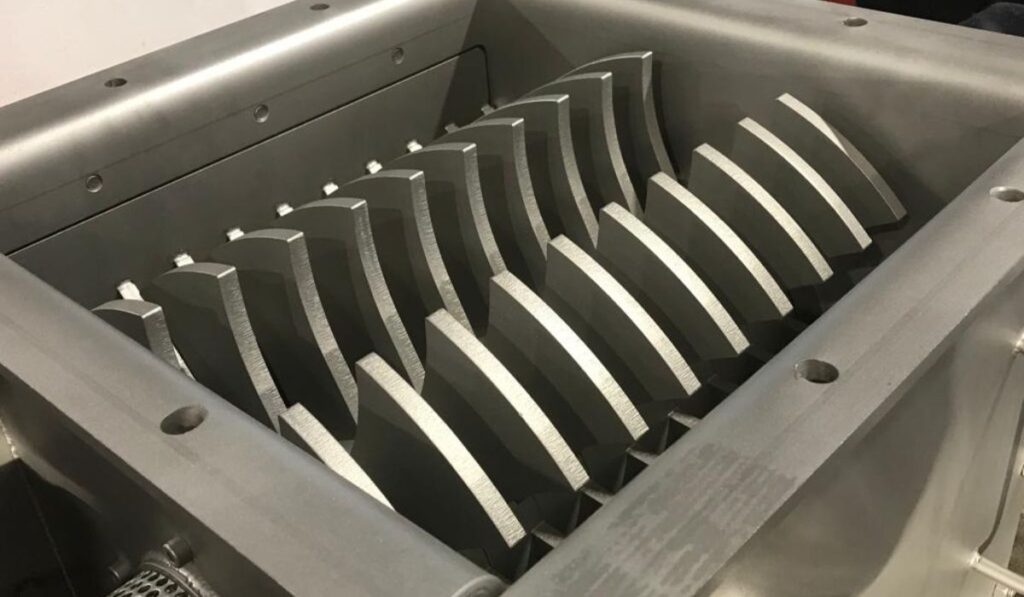

- Rotor: shaft with spacers on the grinding discs.
- Distance between blades 10mm.

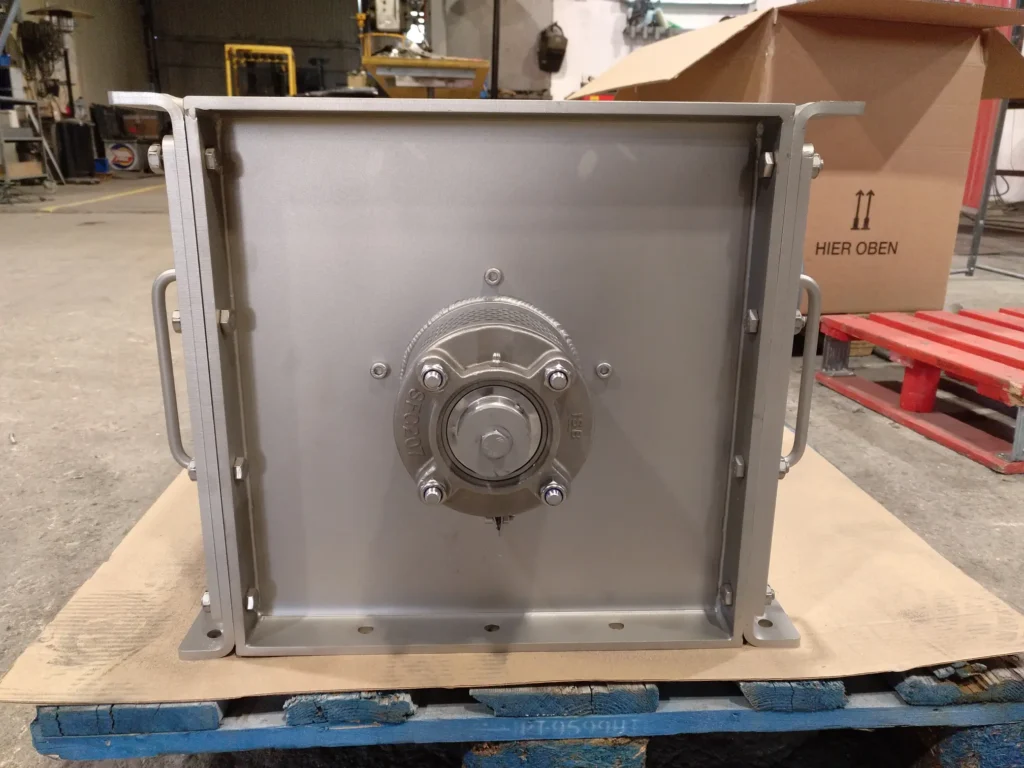

- External bearings on both sides.
- Shaft seal: radial seal.
- Inspection cover on each side of the casing for easy access and maintenance.
- Easy disassembly for cleaning.
- NORD direct three-phase geared motor.
- Built of painted carbon steel, galvanized or stainless steel.
LUMP BREAKING FOR FINE GRAIN
The best option to obtain the desired particle size. It crumbles the lumps of product without crushing it.
Features (standard model):
- Rotor: shaft with horizontal bar rotor.
- External bearings on both sides.
- Shaft seal: radial seal.
- Removable semi-circular sieve-holder, with removable mesh according to the desired particle diameter.
- Easy disassembly for cleaning.
- NORD three-phase geared motor.
- Made of painted carbon steel, galvanized or stainless steel.

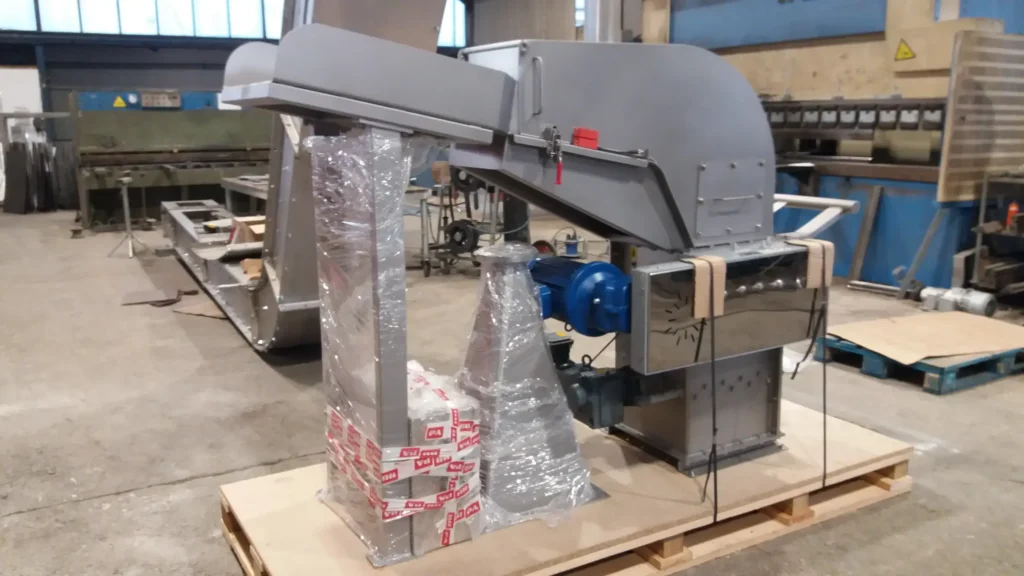

LUMP BREAKING SET WITH RAMP FOR BAGS
Double lump breaker set with tray for bag entry. With the two teams we got:
- First: Break the large clods with the coarse grain clod breaking equipment.
- Second: With the fine grain lump equipment through the bar rotor and the lower mesh, achieve the desired granulometry.
It’s made up:
- Structure with tray and folding lid for bags.
- Top opening system with quick closures and security detectors. Easily accessible for cleaning and inspection.
- Lump Breaking for Coarse Grain model DTG-400.
- Lump Breaking for Fine Grain model DTG-400, possibility to (incorporate meshes of different lights).
- Electrical panel for the 2 lump breakers with frequency variator for the lower lump breaker. (The Panel measures: 500x400x210)
Wide range of options to equip your lump breaking:
- With Teflon glands for greater sealing of shafts in very dusty products.
- Option in stainless steel INOX 304 or INOX 316.
- Adaptation to ATEX regulations
- Rotation detector.
- Customized upper and lower hopper.
- Inspection covers with quick closures and security detectors.
Benefits:
- Easy and low maintenance.
- Wide range of applications.
- Good accessibility to the grinding door.
- High energy efficiency motor.
